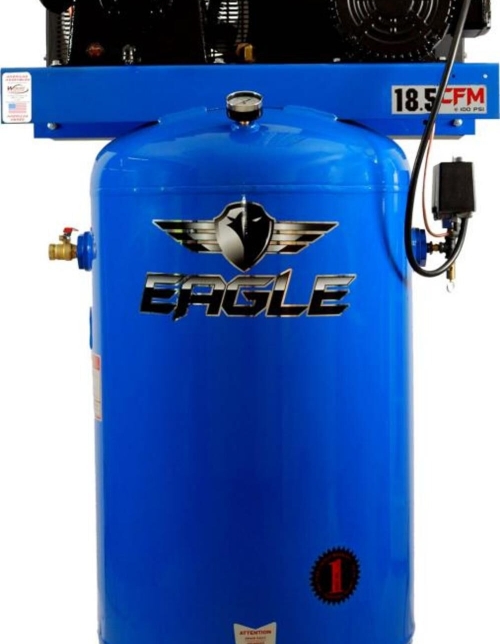

Eagle Compressor 80 Gallon 5 HP Stationary Vertical Compressor
Eagle 5180V2-CS 80 Gallon ASME horizontal stationary capacity tank. Thermally protected 5 HP 230 volt 50 Hz single phase or three phase electric motor. Cast iron cylinders with V design. Oil lube compressor delivers 18.5 CFM at 100 PSI. 175 Maximum PSI. Easy view oil sight gauge. Metal air filers with “auto drop” feature. Efficient heat removal from pulley-fan for cooler running and longer life. Sturdy metal belt guard. Outlet valve included.
FEATURES
- 80 Gallon ASME registered tank, 175 PSI rating
- 5 HP stationary vertical
- Cast iron cylinders with "V" design minimizes vibration
- 175 PSI maximum rated
- Convenient oil drain on front of unit
- Heavy duty pressure switch has on/off control
- Easy view oil sight gauge
- High efficiency reed valves for maximum performance. Single Phase.
SPECIFICATIONS
Brand Name
Eagle Compressor
Air Compressor Pump Design
Oil Lubricated
Amperage (A)
0
Assembled Weight (lbs)
525
California Proposition 65 Warning Required
Yes
Color
Blue
Compressor Design
Vertical
Country of Origin
United
States
CSA Certified
No
ETL Listed
No
Height (in)
69
Horsepower (hp)
5
MFG Part # (OEM)
5180V2-CS
Maximum Pressure Rating (psi)
175
Operating Position
Vertical
Package Contents
80
Gallon 5 HP Stationary Vertical Compressor
Package Depth
48
Package Height
78
Package Weight
525
Phase
1
Product Condition
New
Tank Capacity (gal)
80
Tank Configuration
Single
Tank Material
Metal
Tank Pressure Gauge
Yes
UL Listed
No
Voltage
230
Warranty Type
1 Year Limited
Weight (lbs)
450
Wheeled
No
